Ideal for manufacturing, production and assembly linefeed operations, SailRail Side by Side machines provide a continuous uninterrupted supply of racks to the assembly line under operator control.


Designed for high throughput and fast cycle requirements.

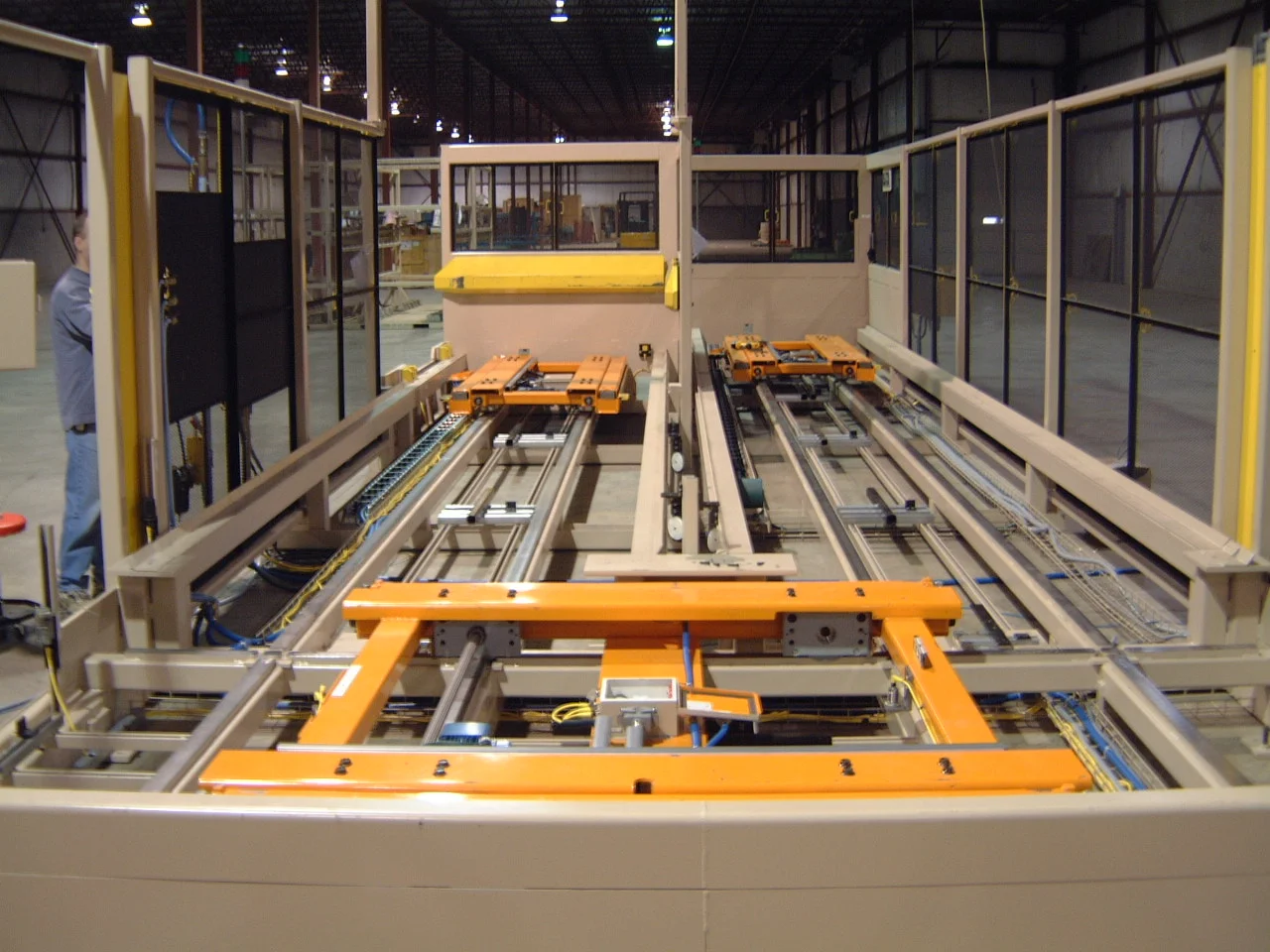

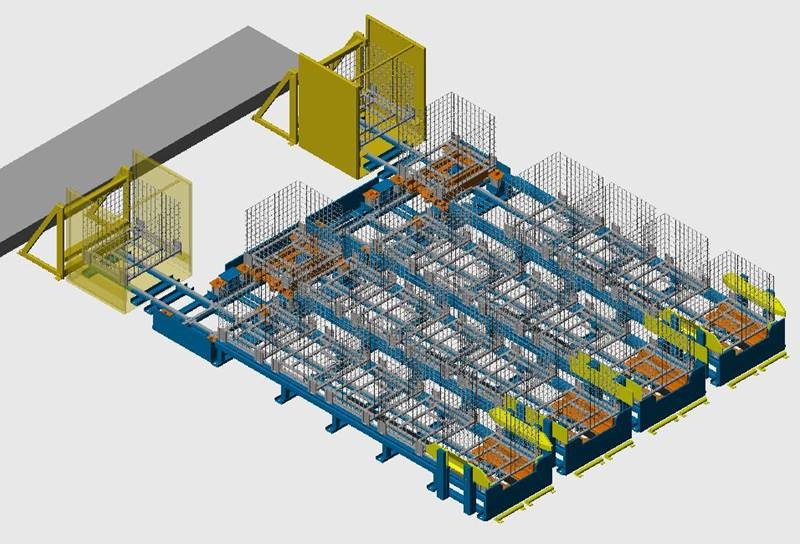

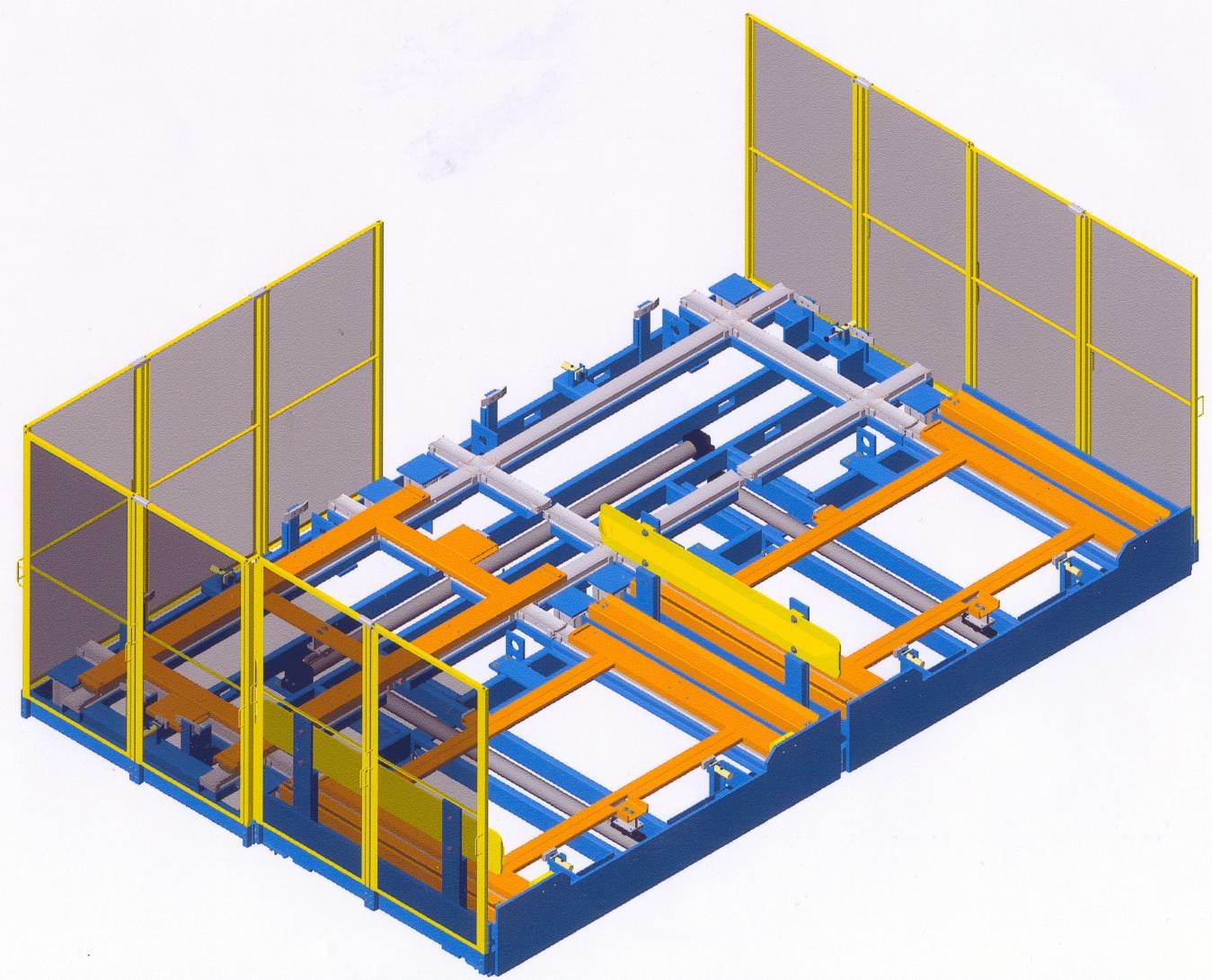

Side by Side machines consist of an infeed lane and an outfeed lane with two 90 ° cross-transfers. Rack handling time is minimized through dual cycle forklift operation. Deadheading is eliminated and it is possible to index large groups of containers simultaneously.

Available with tilts and turntables, variable pick height and floor flush walk-in capabilities. Typical cycle times of 28 seconds are provided and faster cycle times are available - consult factory. Offered in various technologies..


Features and benefits:

  • Maintains assembly line up time - reduces requirement for demand service by providing a container buffer accumulation at point of Linefeed

  • Assembly operator efficiency is increased by reducing waiting time and by having loads travel to operator instead of operator traveling to loads

  • Accurate and reliable load positioning facilitates interfacing with robotics and dedicated automation

  • Conserves valuable plant space and reduces congestion

  • Zero pressure full accumulation - maintains a 6” space between all unit loads being conveyed

  • Modular design incorporates the very best of functional reliability, performance and flexibility

  • Fully automatic operation by PLC - with manual override controls and Dual Direction Capability

  • Increases robotic and automated assembly tooling throughput up to 20%

  • Employee Safety increased by eliminating forklift movement and container handling adjacent to the assembly line

  • Reduces fork lift travel - empty racks can automatically accumulate back to aisle

  • Ensures no relative motion occurs between transfer bed and the unit loads, thus eliminating load jams, product damage and equipment damage
